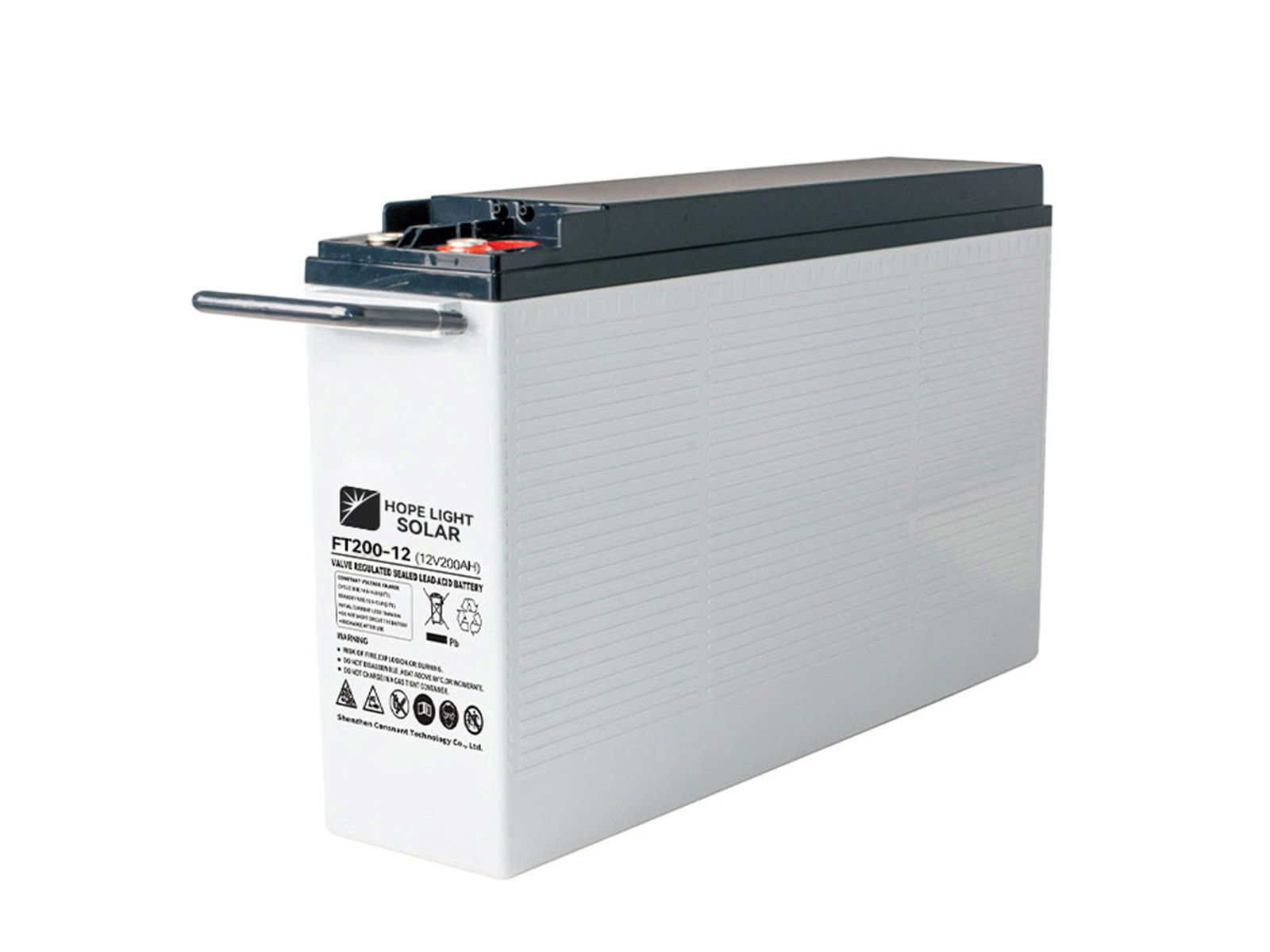

Model of Products: HPF12-200
Front Terminal Lead Acid battery 12V 200ah ,
Maintenance-free , easy to install , safe .
Usually used for small solar system kit , Telecom station , ect .
Precautions for use:

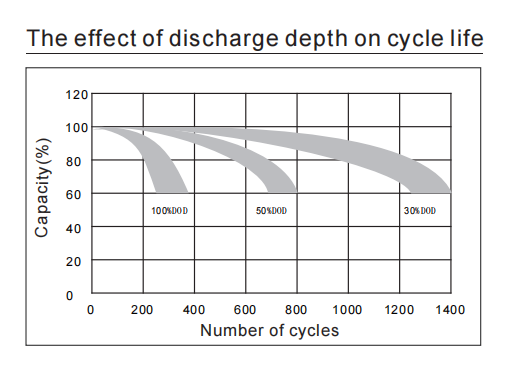

1. The lead-acid battery should not be discharged too deeply, otherwise it will affect the battery life.
2. Do not use it in high temperature, high humidity, and dusty places, otherwise it may cause a short circuit.
3. Use a dedicated charger and strictly follow the charge and discharge voltage settings in the user manual.
4. Before using it for the first time, it is best to perform a full charge and discharge process to ensure
that the chemical substances in the battery are completely activated, which will increase the capacity and life of the battery.
Specification:
Nominal Voltage : 12V
Nominal Capacity : 200Ah

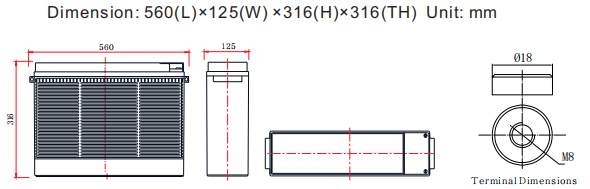

Terminal : M8
Approx. Weight : 59KG
Container Material :ABS
Operating Temperature :
Discharge: -40 ~60℃(-40~ 140°F)
Charge : -20 ~50℃(-4~ 122°F)
Storage: -20 ~50℃(-4~ 122°F)
Charge Method (25 °C) :
Charge current: Max. 50.0A;Recom.20.0A
Float Charge:13.5-13.8V,recom.13.5V(-18mV/ °C)
Equalize charge:13.8-14.1V,recom.14.1V(-24mV/ °C)
Cycle charge:14.4-15.0V,recom.14.4V(-30mV/ °C)
Self discharge :
3% of capacity declined per month at 25°C
