Brand : Canadian Solar
Bifacial Solar Panel
Top-Con , N-type Technology
Power Range : 430W-- 700W

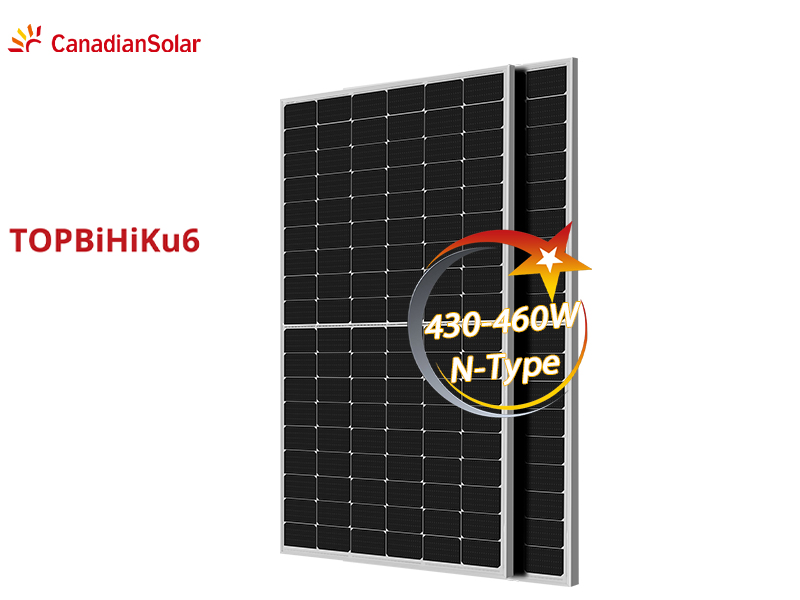

430W-460W Solar Panel
Electrical Specifications
|
Nominal Max. Power |
Opt. |
Opt. |
Open Circuit Voltage |
Short Circuit Current |
Module Efficiency |
|
Operating Voltage |
Operating Current |
||||||
(Pmax) |
(Vmp) |
(Imp) |
(Voc) |
(ISC) |
|||
CS6.1-54TB-430 |
430 W |
32.2 V |
13.38 A |
38.1 V |
14.25 A |
21.10% |
|
Bifacial Gain** |
5% |
452 W |
32.2 V |
14.05 A |
38.1V |
14.96 A |
22.10% |
10% |
473W |
32.2 V |
14.72 A |
38.1 V |
15.68 A |
23.20% |
|
20% |
516 W |
32.2V |
16.06 A |
38.1 V |
17.10 A |
25.30% |
|
CS6.1-54TB-435 |
435 W |
32.4 V |
13.45 A |
38.3V |
14.33 A |
21.30% |
|
Bifacial Gain** |
5% |
457W |
32.4V |
14.12 A |
38.3V |
15.05 A |
22.40% |
10% |
479 W |
32.4 V |
14.80 A |
38.3V |
15.76 A |
23.50% |
|
20% |
522 W |
32.4V |
16.14 A |
38.3V |
17.20 A |
25.60% |
|
CS6.1-54TB-440 |
440W |
32.6 V |
13.52 A |
38.5V |
14.41 A |
21.60% |
|
Bifacial Gain** |
5% |
462 W |
32.6V |
14.20 A |
38.5 V |
15.13 A |
22.60% |
10% |
484W |
32.6 V |
14.87 A |
38.5 V |
15.85 A |
23.70% |
|
20% |
528 W |
32.6V |
16.22 A |
38.5V |
17.29A |
25.90% |
|
CS6.1-54TB-445 |
445 W |
32.8V |
13.59 A |
38.7V |
14.48 A |
21.80% |
|
Bifacial Gain** |
5% |
467W |
32.8V |
14.27 A |
38.7V |
15.20 A |
22.90% |
10% |
490 W |
32.8V |
14.95 A |
38.7 V |
15.93 A |
24.00% |
|
20% |
534W |
32.8V |
16.31 A |
38.7 V |
17.38 A |
26.20% |
|
CS6.1-54TB-450 |
450 W |
33.0V |
13.66 A |
38.9V |
14.55 A |
22.00% |
|
Bifacial Gain** |
5% |
473 W |
33.0V |
14.34 A |
38.9V |
15.28 A |
23.20% |
10% |
495 W |
33.0 V |
15.03 A |
38.9V |
16.01 A |
24.30% |
|
20% |
540 W |
33.0V |
16.39 A |
38.9 V |
17.46 A |
26.50% |
|
CS6.1-54TB-455 |
455 W |
33.2V |
13.72 A |
39.1 V |
14.61 A |
22.30% |
|
Bifacial Gain** |
5% |
478W |
33.2V |
14.41 A |
39.1 V |
15.34 A |
23.40% |
10% |
501 W |
33.2V |
15.09A |
39.1V |
16.07 A |
24.50% |
|
20% |
546 W |
33.2V |
16.46 A |
39.1 V |
17.53 A |
26.70% |
|
CS6.1-54TB-460 |
460W |
33.4V |
13.78 A |
39.3V |
14.69A |
22.50% |
|
Bifacial Gain** |
5% |
483W |
33.4V |
14.47 A |
39.3V |
15.42 A |
23.70% |
10% |
506 W |
33.4V |
15.16A |
39.3V |
16.16 A |
24.80% |
|
20% |
552 W |
33.4 V |
16.54 A |
39.3V |
17.63 A |
27.00% |
590W-620W Solar Panel
Electrical Specifications
|
Nominal Max.Power |
Opt. |
Opt. |
Open Circuit Voltage |
Short Circuit Current |
Module Efficiency |
|
Operating Voltage |
Operating Current |
||||||
(Pmax) |
(Vmp) |
(Imp) |
(Voc) |
(ISC) |
|||
CS6.1-72TB-590 |
590W |
43.6V |
13.54A |
51.4V |
14.42 A |
21.80% |
|
Bifacial Gain** |
5% |
620W |
43.6V |
14.22A |
51.4V |
15.14 A |
23.00% |
10% |
649W |
43.6V |
14.89A |
51.4V |
15.86 A |
24.00% |
|
20% |
708W |
43.6V |
16.25A |
51.4V |
17.30 A |
26.20% |
|
CS6.1-72TB-595 |
595 W |
43.8V |
13.59A |
51.6V |
14.48 A |
22.00% |
|
Bifacial Gain** |
5% |
625W |
43.8V |
14.27A |
51.6V |
15.20 A |
23.10% |
10% |
655W |
43.8V |
14.95A |
51.6V |
15.93 A |
24.20% |
|
20% |
714W |
43.8V |
16.31 A |
51.6V |
17.38 A |
26.40% |
|
CS6.1-72TB-600 |
600W |
44.0V |
13.64 A |
51.8V |
14.54 A |
22.20% |
|
Bifacial Gain** |
5% |
630W |
44.0V |
14.32A |
51.8V |
15.27 A |
23.30% |
10% |
660W |
44.0V |
15.00 A |
51.8V |
15.99 A |
24.40% |
|
20% |
720W |
44.0V |
16.37A. |
51.8V |
17.45 A |
26.70% |
|
CS6.1-72TB-605 |
605W |
44.2V |
13.69A |
52.0V |
14.60 A |
22.40% |
|
Bifacial Gain** |
5% |
635W |
44.2V |
14.37A |
52.0V |
15.33 A |
23.50% |
10% |
666W |
44.2V |
15.06A |
52.0V |
16.06 A |
24.70% |
|
20% |
726W |
44.2V |
16.43A |
52.0V |
17.52 A |
26.90% |
|
CS6.1-72TB-610 |
610W |
44.4V |
13.74A |
52.2V |
14.66 A |
22.60% |
|
Bifacial Gain** |
5% |
641W |
44.4V |
14.43 A |
52.2V |
15.39 A |
23.70% |
10% |
671W |
44.4V |
15.11 A |
52.2V |
16.13 A |
24.80% |
|
20% |
732W |
44.4V |
16.49A |
52.2V |
17.59 A |
27.10% |
|
CS6.1-72TB-615 |
615W |
44.6 V |
13.79A |
52.4V |
14.72 A |
22.80% |
|
Bifacial Gain** |
5% |
646 W |
44.6V |
14.48A |
52.4V |
15.46 A |
23.90% |
10% |
677 W |
44.6V |
15.17A |
52.4V |
16.19 A |
25.10% |
|
20% |
738W |
44.6V |
16.55A |
52.4V |
17.66 A |
27.30% |
|
CS6.1-72TB-620 |
620W |
44.8V |
13.84A |
52.6V |
14.78 A |
23.00% |
|
Bifacial Gain** |
5% |
651 W |
44.8V |
14.53A |
52.6V |
15.52 A |
24.10% |
10% |
682W |
44.8V |
15.22A |
52.6V |
16.26 A |
25.20% |
|
20% |
744W |
44.8V |
16.61 A |
52.6V |
17.74A |
27.50% |
675W-705W Solar Panel
Electrical Specifications
|
Nominal |
Opt. |
Opt. |
Open |
Short |
Module Efficiency |
|
Operating |
Operating |
||||||
(Pmax) |
(Vmp) |
(Imp) |
(Voc) |
(ISC) |
|||
CS7N-675TB-AG |
675 W |
39.0V |
17.31 A |
46.9 V |
18.24A |
21.70% |
|
Bifacial Gain** |
5% |
709 W |
39.0V |
18.19A |
46.9V |
19.15A |
22.80% |
10% |
743W |
39.0V |
19.04 A |
46.9V |
20.06A |
23.90% |
|
20% |
810 W |
39.0V |
20.77 A |
46.9 V |
21.89A |
26.10% |
|
CS7N-680TB-AG |
680W |
39.2V |
17.35A |
47.1 V |
18.29A |
21.90% |
|
Bifacial Gain** |
5% |
714 W |
39.2V |
18.22A |
47.1 V |
19.20A |
23.00% |
10% |
748 W |
39.2V |
19.09 A |
47.1V |
20.12A |
24.10% |
|
20% |
816 W |
39.2V |
20.82 A |
47.1 V |
21.95A |
26.30% |
|
CS7N-685TB-AG |
685 W |
39.4V |
17.39A |
47.3V |
18.34A |
22.10% |
|
Bifacial Gain** |
5% |
719W |
39.4V |
18.26 A |
47.3V |
19.26A |
23.10% |
10% |
754 W |
39.4V |
19.14 A |
47.3V |
20.17A |
24.30% |
|
20% |
822 W |
39.4V |
20.87 A |
47.3V |
22.01 A |
26.50% |
|
CS7N-690TB-AG |
690W |
39.6V |
17.43 A |
47.5V |
18.39A |
22.20% |
|
Bifacial Gain** |
5% |
725 W |
39.6V |
18.31 A |
47.5V |
19.31 A |
23.30% |
10% |
759 W |
39.6V |
19.17A |
47.5V |
20.23A |
24.40% |
|
20% |
828W |
39.6V |
20.92 A |
47.5V |
22.07A |
26.70% |
|
CS7N-695TB-AG |
695W |
39.8V |
17.47A |
47.7V |
18.44A |
22.40% |
|
Bifacial Gain** |
5% |
730 W |
39.8V |
18.34 A |
47.7V |
19.36A |
23.50% |
10% |
765W |
39.8V |
20.18 A |
47.7V |
20.28A |
24.60% |
|
20% |
834 W |
39.8V |
20.96A |
47.7V |
22.13A |
26.80% |
|
CS7N-700TB-AG |
700W |
40.0V |
17.51 A |
47.9V |
18.49A |
22.50% |
|
Bifacial Gain** |
5% |
735W |
40.0V |
18.39 A |
47.9 V |
19.41A |
23.70% |
10% |
770W |
40.0V |
20.22 A |
47.9V |
20.34A |
24.80% |
|
20% |
840 W |
40.0V |
21.01 A |
47.9V |
22.19A |
27.00% |
|
CS7N-705TB-AG |
705 W |
40.2V |
17.55 A |
48.1 V |
18.54A |
22.70% |
|
Bifacial Gain** |
5% |
740 W |
40.2V |
18.43A |
48.1 V |
19.47A |
23.80% |
10% |
776 W |
40.2V |
20.27 A |
48.1V |
20.39A |
25.00% |
|
20% |
846 W |
40.2V |
21.06A |
48.1 V |
22.25A |
27.20% |
