Brand : Jinko Solar
Bifacial Solar Panel
Top-Con , N-type Technology
Power Range : 430W-- 720W

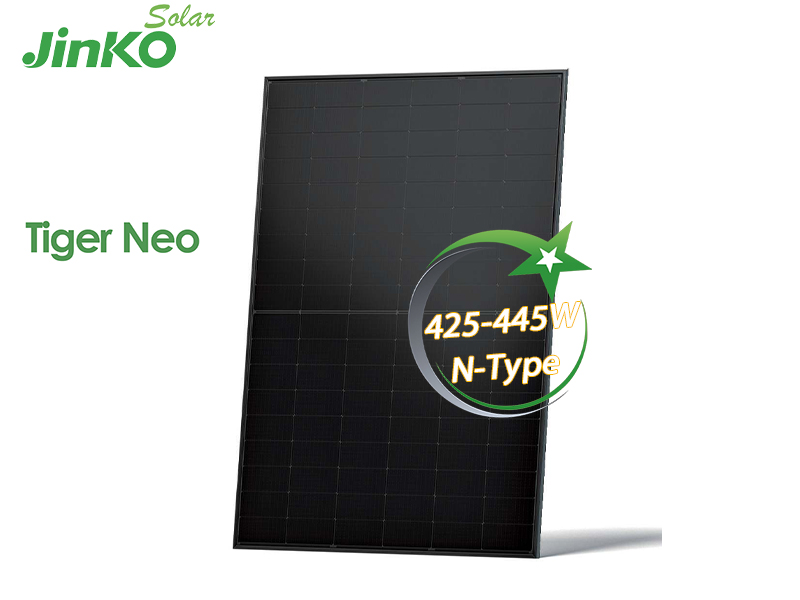

425W-445W Solar Panel
Electrical Specifications
Maximum Power-Pmax[Wp] |
425 |
430 |
435 |
440 |
445 |
Maximum Power Voltage-Vmp [V] |
32.37 |
32.58 |
32.78 |
32.99 |
33.19 |
Maximum Power Current-Imp [A] |
13.13 |
13.20 |
13.27 |
13.34 |
13.41 |
Open-circuit Voltage-Voc [V] |
38.95 |
39.16 |
39.36 |
39.57 |
39.77 |
Short-circuit Current-Isc[A] |
13.58 |
13.65 |
13.72 |
13.80 |
13.87 |
Module Efficiency STC [%] |
21.27 |
21.52 |
21.77 |
22.02 |
22.27 |
Power Tolerance |
0~+3% |
430W-450W Solar Panel
Electrical Specifications
Maximum Power-Pmax[Wp] |
430 |
435 |
440 |
445 |
450 |
Maximum Power Voltage-Vmp [V] |
32.38 |
32.59 |
32.81 |
33.02 |
33.21 |
Maximum Power Current-Imp [A] |
13.28 |
13.35 |
13.41 |
13.48 |
13.55 |
Open-circuit Voltage-Voc [V] |
38.95 |
39.16 |
39.38 |
39.59 |
39.78 |
Short-circuit Current-Isc [A] |
13.73 |
13.80 |
13.86 |
13.93 |
14.00 |
Module Efficiency STC [%] |
21.52 |
21.77 |
22.02 |
22.27 |
22.52 |
Power tolerance |
0~+3% |

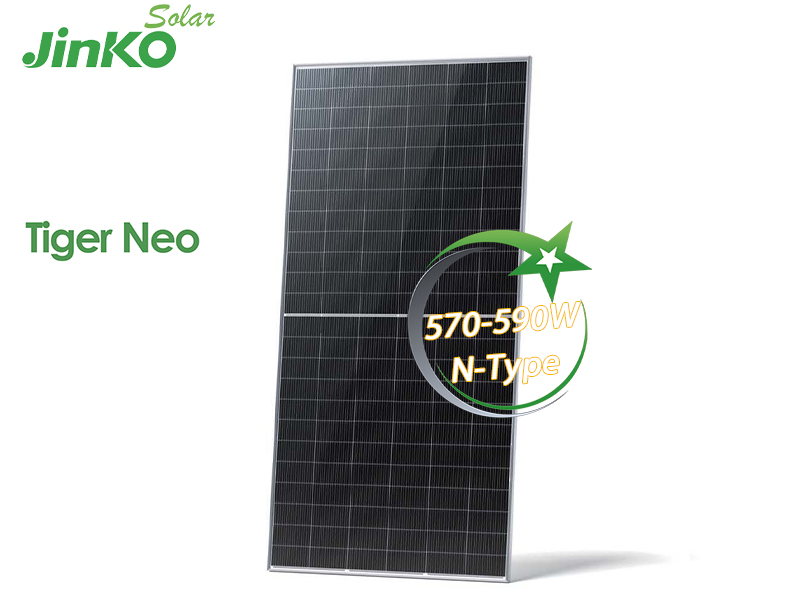

570W-590W Solar Panel
Electrical Specifications
Maximum Power-Pmax[Wp] |
570 |
575 |
580 |
585 |
590 |
Maximum Power Voltage-Vmp [V] |
43.58 |
43.73 |
43.88 |
44.02 |
44.17 |
Maximum Power Current-Imp [A] |
13.08 |
13.15 |
13.22 |
13.29 |
13.36 |
Open-circuit Voltage-Voc [V] |
52.10 |
52.30 |
52.50 |
52.70 |
52.90 |
Short-circuit Current-Isc [A] |
13.83 |
13.89 |
13.95 |
14.01 |
14.07 |
Module Efficiency STC [%] |
22.07 |
22.26 |
22.45 |
22.65 |
22.84 |
Power Tolerance |
0~+3% |

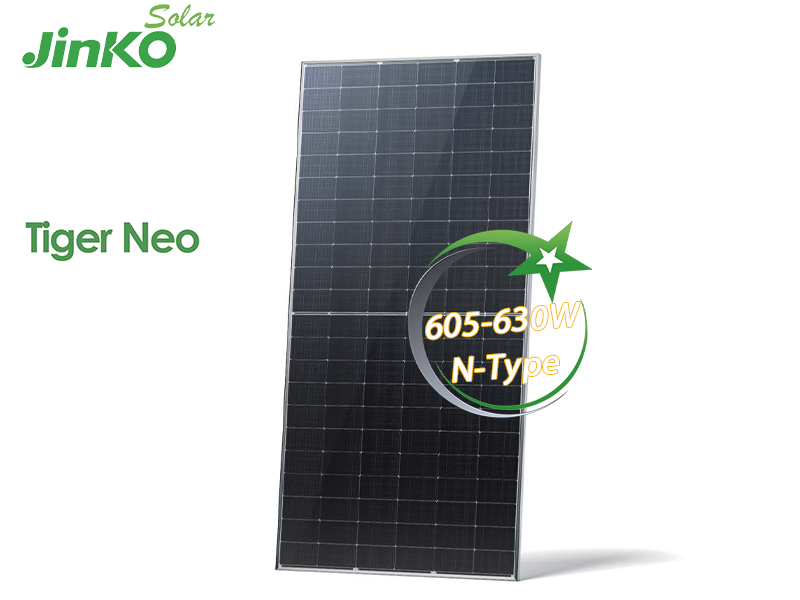

605W-630W Solar Panel
Electrical Specifications
Maximum Power-Pmax[Wp] |
605 |
610 |
620 |
625 |
630 |
Maximum Power Voltage-Vmp [V] |
40.39 |
40.56 |
40.90 |
41.07 |
41.23 |
Maximum Power Current-Imp[A] |
14.98 |
15.04 |
15.16 |
15.22 |
15.28 |
Open-circuit Voltage-Voc[V] |
48.47 |
48.63 |
48.95 |
49.11 |
49.27 |
Short-circuit Current-Isc [A] |
15.94 |
16.01 |
16.15 |
16.22 |
16.29 |
Module Efficiency STC [%] |
22.40 |
22.58 |
22.95 |
23.14 |
23.32 |
Power Tolerance |
0~ +3% |
